GANomaly

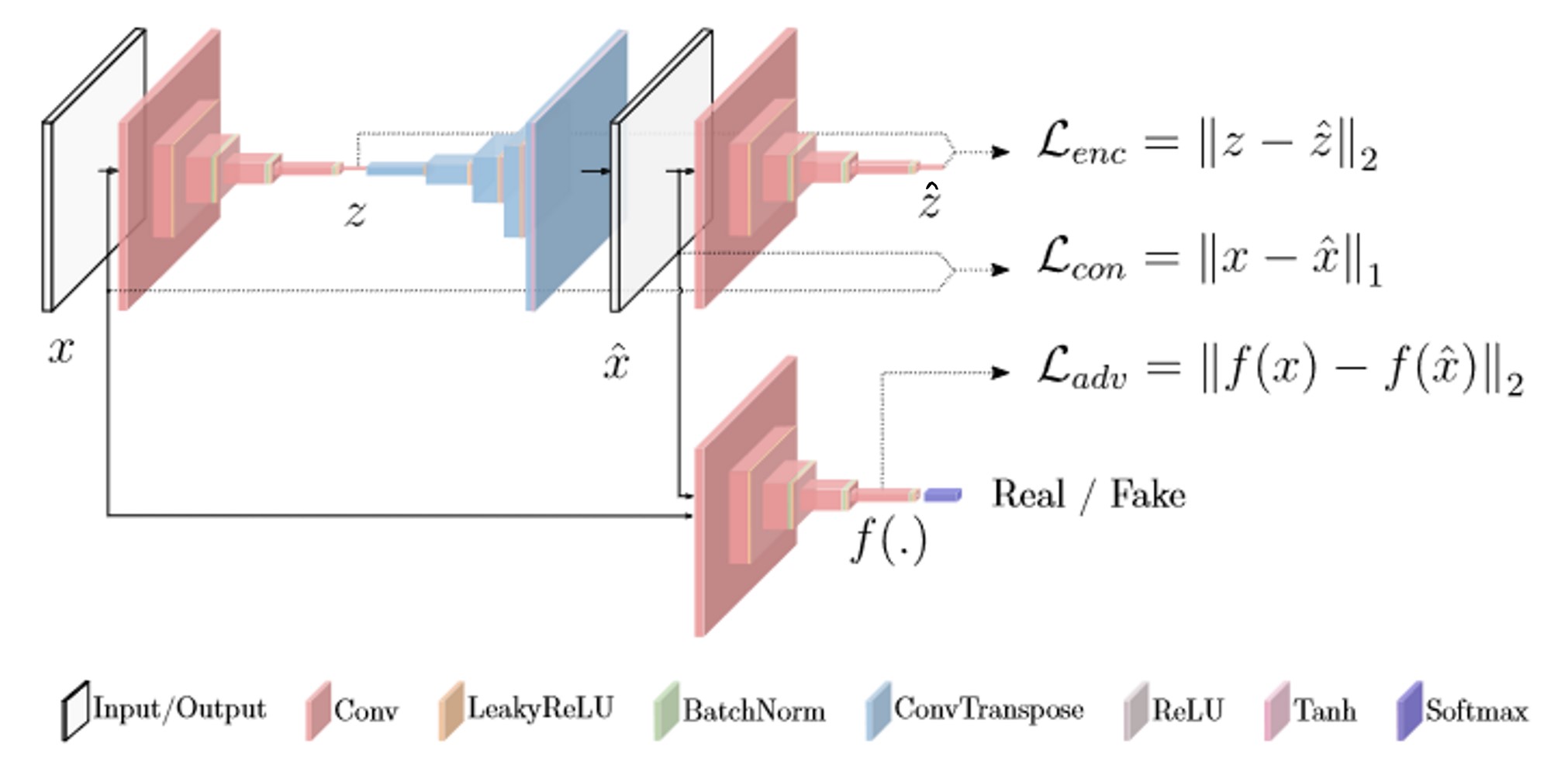

Architecture

GANomaly: Semi-Supervised Anomaly Detection via Adversarial Training.

GANomaly is an anomaly detection model that uses a conditional GAN architecture to learn the normal data distribution. The model consists of a generator network that learns to reconstruct normal images, and a discriminator that helps ensure the reconstructions are realistic.

Example

>>> from anomalib.data import MVTecAD
>>> from anomalib.models import Ganomaly
>>> from anomalib.engine import Engine

>>> datamodule = MVTecAD()
>>> model = Ganomaly()
>>> engine = Engine()

>>> engine.fit(model, datamodule=datamodule)
>>> predictions = engine.predict(model, datamodule=datamodule)

Paper:

Title: GANomaly: Semi-Supervised Anomaly Detection via Adversarial Training URL: https://arxiv.org/abs/1805.06725

See also

anomalib.models.image.ganomaly.torch_model.GanomalyModel:

PyTorch implementation of the GANomaly model architecture.

anomalib.models.image.ganomaly.loss.GeneratorLoss:

Loss function for the generator network.

anomalib.models.image.ganomaly.loss.DiscriminatorLoss:

Loss function for the discriminator network.

class anomalib.models.image.ganomaly.lightning_model.Ganomaly(batch_size=32, n_features=64, latent_vec_size=100, extra_layers=0, add_final_conv_layer=True, wadv=1, wcon=50, wenc=1, lr=0.0002, beta1=0.5, beta2=0.999, pre_processor=True, post_processor=True, evaluator=True, visualizer=True)

Bases: AnomalibModule

PL Lightning Module for the GANomaly Algorithm.

The GANomaly model consists of a generator and discriminator network. The generator learns to reconstruct normal images while the discriminator helps ensure the reconstructions are realistic. Anomalies are detected by measuring the reconstruction error and latent space differences.

Parameters:

• batch_size (int) – Number of samples in each batch. Defaults to 32.

• n_features (int) – Number of feature channels in CNN layers. Defaults to 64.

• latent_vec_size (int) – Dimension of the latent space vectors. Defaults to 100.

• extra_layers (int) – Number of extra layers in encoder/decoder. Defaults to 0.

• add_final_conv_layer (bool) – Add convolution layer at the end. Defaults to True.

• wadv (int) – Weight for adversarial loss component. Defaults to 1.

• wcon (int) – Weight for image reconstruction loss component. Defaults to 50.

• wenc (int) – Weight for latent vector encoding loss component. Defaults to 1.

• lr (float) – Learning rate for optimizers. Defaults to 0.0002.

• beta1 (float) – Beta1 parameter for Adam optimizers. Defaults to 0.5.

• beta2 (float) – Beta2 parameter for Adam optimizers. Defaults to 0.999.

• pre_processor (PreProcessor | bool) – Pre-processor to transform inputs before passing to model. Defaults to True.

• post_processor (PostProcessor | bool) – Post-processor to generate predictions from model outputs. Defaults to True.

• evaluator (Evaluator | bool) – Evaluator to compute metrics. Defaults to True.

• visualizer (Visualizer | bool) – Visualizer to display results. Defaults to True.

Example

>>> from anomalib.models import Ganomaly
>>> model = Ganomaly(
...     batch_size=32,
...     n_features=64,
...     latent_vec_size=100,
...     wadv=1,
...     wcon=50,
...     wenc=1,
... )

See also

anomalib.models.image.ganomaly.torch_model.GanomalyModel:

PyTorch implementation of the GANomaly model architecture.

anomalib.models.image.ganomaly.loss.GeneratorLoss:

Loss function for the generator network.

anomalib.models.image.ganomaly.loss.DiscriminatorLoss:

Loss function for the discriminator network.

static configure_evaluator()

Default evaluator for GANomaly.

Return type:

Evaluator

configure_optimizers()

Configure optimizers for each decoder.

Returns:

Adam optimizer for each decoder

Return type:

list[Optimizer]

property learning_type: LearningType

Return the learning type of the model.

Returns:

Learning type of the model.

Return type:

LearningType

on_test_batch_end(outputs, batch, batch_idx, dataloader_idx=0)

Normalize outputs based on min/max values.

Return type:

None

on_test_start()

Reset min max values before test batch starts.

Return type:

None

on_validation_batch_end(outputs, batch, batch_idx, dataloader_idx=0)

Normalize outputs based on min/max values.

Return type:

None

on_validation_start()

Reset min and max values for current validation epoch.

Return type:

None

test_step(batch, batch_idx, *args, **kwargs)

Update min and max scores from the current step.

Return type:

Batch

property trainer_arguments: dict[str, Any]

Return GANomaly trainer arguments.

training_step(batch, batch_idx)

Perform the training step.

Parameters:

• batch (Batch) – Input batch containing images.

• batch_idx (int) – Batch index.

• optimizer_idx (int) – Optimizer which is being called for current training step.

Returns:

Loss

Return type:

Union[Tensor, Mapping[str, Any], None]

validation_step(batch, *args, **kwargs)

Update min and max scores from the current step.

Parameters:

• batch (Batch) – Predicted difference between z and z_hat.

• args – Additional arguments.

• kwargs – Additional keyword arguments.

Returns:

Output predictions.

Return type:

Batch

Torch models defining encoder, decoder, generator and discriminator networks.

The GANomaly model consists of several key components:

1. Encoder: Compresses input images into latent vectors

2. Decoder: Reconstructs images from latent vectors

3. Generator: Combines encoder-decoder-encoder for image generation

4. Discriminator: Distinguishes real from generated images

The architecture follows an encoder-decoder-encoder pattern where: - First encoder compresses input image to latent space - Decoder reconstructs the image from latent vector - Second encoder re-encodes reconstructed image - Anomaly score is based on difference between latent vectors

Example

>>> from anomalib.models.image.ganomaly.torch_model import GanomalyModel
>>> model = GanomalyModel(
...     input_size=(256, 256),
...     num_input_channels=3,
...     n_features=64,
...     latent_vec_size=100,
...     extra_layers=0,
...     add_final_conv_layer=True
... )
>>> input_tensor = torch.randn(32, 3, 256, 256)
>>> output = model(input_tensor)

Code adapted from:

Title: GANomaly - PyTorch Implementation Authors: Samet Akcay URL: samet-akcay/ganomaly License: MIT

See also

• anomalib.models.image.ganomaly.lightning_model.Ganomaly:

  Lightning implementation of the GANomaly model

• anomalib.models.image.ganomaly.loss.GeneratorLoss:

  Loss function for the generator network

• anomalib.models.image.ganomaly.loss.DiscriminatorLoss:

  Loss function for the discriminator network

class anomalib.models.image.ganomaly.torch_model.GanomalyModel(input_size, num_input_channels, n_features, latent_vec_size, extra_layers=0, add_final_conv_layer=True)

Bases: Module

GANomaly model for anomaly detection.

Complete model combining Generator and Discriminator networks.

Parameters:

• input_size (tuple[int, int]) – Input image size (height, width)

• num_input_channels (int) – Number of input image channels

• n_features (int) – Number of feature maps in convolution layers

• latent_vec_size (int) – Size of latent vector between encoder-decoder

• extra_layers (int) – Number of extra intermediate layers. Defaults to 0.

• add_final_conv_layer (bool) – Add final convolution to encoders. Defaults to True.

Example

>>> model = GanomalyModel(
...     input_size=(256, 256),
...     num_input_channels=3,
...     n_features=64,
...     latent_vec_size=100
... )
>>> input_tensor = torch.randn(32, 3, 256, 256)
>>> output = model(input_tensor)

References

• Title: GANomaly: Semi-Supervised Anomaly Detection via Adversarial

  Training

• Authors: Samet Akcay, Amir Atapour-Abarghouei, Toby P. Breckon

• URL: https://arxiv.org/abs/1805.06725

forward(batch)

Forward pass through GANomaly model.

Parameters:

batch (Tensor) – Batch of input images

Return type:

tuple[Tensor, Tensor, Tensor, Tensor] | InferenceBatch

Returns:

tuple[torch.Tensor, torch.Tensor, torch.Tensor, torch.Tensor] | InferenceBatch:

If training:

• Padded input batch

• Generated images

• First encoder’s latent vectors

• Second encoder’s latent vectors

If inference:

• Batch containing anomaly scores

static weights_init(module)

Initialize DCGAN weights.

Parameters:

module (Module) – Neural network module to initialize

Return type:

None

Loss functions for the GANomaly model implementation.

The GANomaly model uses two loss functions:

1. Generator Loss: Combines adversarial loss, reconstruction loss and encoding loss

2. Discriminator Loss: Binary cross entropy loss for real/fake image discrimination

Example

>>> from anomalib.models.image.ganomaly.loss import GeneratorLoss
>>> generator_loss = GeneratorLoss(wadv=1, wcon=50, wenc=1)
>>> loss = generator_loss(latent_i, latent_o, images, fake, pred_real, pred_fake)

>>> from anomalib.models.image.ganomaly.loss import DiscriminatorLoss
>>> discriminator_loss = DiscriminatorLoss()
>>> loss = discriminator_loss(pred_real, pred_fake)

See also

anomalib.models.image.ganomaly.torch_model.GanomalyModel:

PyTorch implementation of the GANomaly model architecture.

class anomalib.models.image.ganomaly.loss.DiscriminatorLoss

Bases: Module

Discriminator loss for the GANomaly model.

Uses binary cross entropy to train the discriminator to distinguish between real and generated images.

Example

>>> discriminator_loss = DiscriminatorLoss()
>>> loss = discriminator_loss(
...     pred_real=torch.randn(32, 1),
...     pred_fake=torch.randn(32, 1)
... )

forward(pred_real, pred_fake)

Compute the discriminator loss for predicted batch.

Parameters:

• pred_real (Tensor) – Discriminator predictions for real images.

• pred_fake (Tensor) – Discriminator predictions for fake images.

Returns:

Average discriminator loss.

Return type:

Tensor

Example

>>> loss = discriminator_loss(pred_real, pred_fake)

class anomalib.models.image.ganomaly.loss.GeneratorLoss(wadv=1, wcon=50, wenc=1)

Bases: Module

Generator loss for the GANomaly model.

Combines three components: 1. Adversarial loss: Helps generate realistic images 2. Contextual loss: Ensures generated images match input 3. Encoding loss: Enforces consistency in latent space

Parameters:

• wadv (int) – Weight for adversarial loss. Defaults to 1.

• wcon (int) – Weight for contextual/reconstruction loss. Defaults to 50.

• wenc (int) – Weight for encoding/latent loss. Defaults to 1.

Example

>>> generator_loss = GeneratorLoss(wadv=1, wcon=50, wenc=1)
>>> loss = generator_loss(
...     latent_i=torch.randn(32, 100),
...     latent_o=torch.randn(32, 100),
...     images=torch.randn(32, 3, 256, 256),
...     fake=torch.randn(32, 3, 256, 256),
...     pred_real=torch.randn(32, 1),
...     pred_fake=torch.randn(32, 1)
... )

forward(latent_i, latent_o, images, fake, pred_real, pred_fake)

Compute the generator loss for a batch.

Parameters:

• latent_i (Tensor) – Latent features from the first encoder.

• latent_o (Tensor) – Latent features from the second encoder.

• images (Tensor) – Real images that served as generator input.

• fake (Tensor) – Generated/fake images.

• pred_real (Tensor) – Discriminator predictions for real images.

• pred_fake (Tensor) – Discriminator predictions for fake images.

Returns:

Combined weighted generator loss.

Return type:

Tensor

Example

>>> loss = generator_loss(latent_i, latent_o, images, fake,
...                      pred_real, pred_fake)
